Solenoid Valves


X-Valve
X-Valve® is a 2 or 3-way universal solenoid valve measuring just 8mm in width. The X-Valve’s unitized body incorporates its functional features in a single glass-reinforced PBT (Polybutylene Terephthalate) molded body.

Features:
  • * Provides compact size; only 8mm in width.
  • * Meets a range of pressure requirements including 6, 30 & 100 psi.
  • * Offers optional capabilities to meet a 0.016 sccm leakage specification (0.2 sccm for 100 psi) for over 25 million cycles. (worst case tested, no performance degradation)
  • * Ensures high reliability with its single piece body design.
  • * Allows for direct tubing connection or a radial seal for manifold assemblies through its universal barb design.
  • * ROHS compliant
PERFORMANCE CHARACTERISTICS:
Leak Rate:
<0.016 sccm (6 psi Silicone)
<0.016 sccm (30 psi FKM)
<0.16 sccm (6 psi EPDM & FKM)
<0.2 sccm (100 psi only) 		Response:
<20 msec cycling (Silicone, FKM)
<50 msec cycling (EPDM) 		Pressure:
0 to 6 psig (0.04 MPa)
0 to 30 psig (0.20 MPa)
0 to 100 psig (0.69 MPa) 		Minimum Flow:

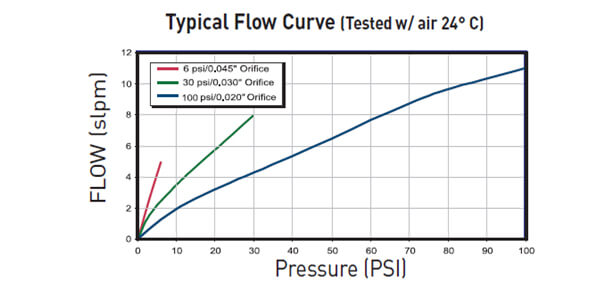

4 lpm @ 6 psi (0.04 MPa)
6 lpm @ 30 psi (0.20 MPa)
9 lpm @ 100 psi (0.69 MPa) 		Orifice Sizes/Equivalent Cv:
0.020"/0.005 Cv
0.030"/0.010 Cv
0.045"/ 0.018 Cv

Enquiry
NEX – Valve
NEX-Valve is a 3 Way 2 position, bidirectional flow, non elastomeric valve that incorporates many of the proven features of the X-valve. NEX is designed to eliminate elastomer swelling commonly encountered in aggressive liquid applications.

Features:
  • * Unique non elastomeric design eliminates compatibility issues typically found with Alchols, Solvents, Water and Solvent based inks
  • * Power consumption as low as 0.5 Watts; PWM and pulse hold circuit compatible
  • * Ensures high reliability with its single piece body design.
  • * Allows for direct tubing connection or a radial seal for manifold assemblies through its universal barb design.
  • * ROHS Compliant
Common Applications:
  • * Inkjet printing, print heads
  • * Liquid cooling systems
  • * Reservoir fill/drain.

Leak Rate:
0.02 cc/min, water (water tight) 		Response:
<20 msec cycling 		Pressure:
0 to 6 psig (0.04 MPa)
0 to 30 psig (0.20 MPa) 		Minimum Flow: Water
160 ml/min @ 6 psi
225 ml/min@ 30 psi 		Orifice Sizes/Equivalent Cv:
0.030"/0.010 Cv
0.045"/ 0.018 Cv

Ten –X Valve
Ten-X® is a 10mm solenoid valve with a 2- or 3-way NO/NC and distributor design. Ten-X delivers repeatable “energized” and “de-energized” response times, low power, and flow capability to meet the specific performance requirements of medical devices.

Features:
  • * Small 10mm footprint, with up to 8 lpm of flow.
  • * Highly reliable single piece body design
  • * Universal barb or manifold connections and PCB mount
  • * 20 million cycles (worst case tested, no performance degradation)
  • * ROHS compliant
Common Applications:
  • * Portable medical equipment
  • * Patient monitors
  • * Wound therapy
  • * Non-invasive blood pressure
Performance Characteristics
Leak Rate:
0.016 sccm of air (Silicone) 0.2 sccm of air (Viton & EPDM) 		Response Time:
<5 msec cycling (Silicone) <20 msec cycling (Viton & EPDM) 		Pressure:
Up to 6 psi (0.04 MPa) 		Minimum Flow:

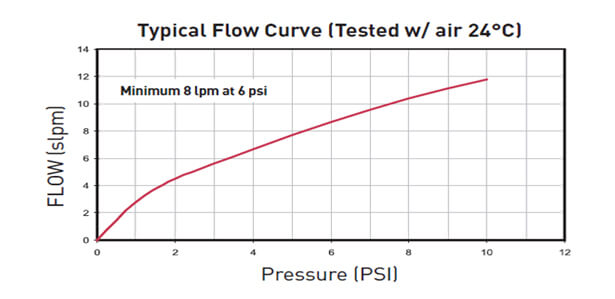

8 lpm @ 6 psi (0.04 MPa) 		Orifice Sizes/Equivalent Cv:
0.060"/0.042 Cv

Ten X Le
The Ten X® Le is an electro-magnetic poppet valve designed to provide the highest performance available for the package size. The quiet, lightweight 10-mm wide valve can be used stand alone with tube connections, PC or multi-station manifold mount set-ups. Integrated drive electronics featuring efficient pulse width modulation (PWM) circuit technology consume minimal power.

Features
  1. Low power, small 10mm footprint with up to 22 lpm of flow
  2. Minimal heat generation provides stable performance for valve and surrounding environment.
  3. 20 million cycles (worst case tested, no performance degradation)
  4. ROHS compliant.
Common Applications:
  1. Portable medical equipment
  2. Patient monitors
  3. Wound therapy
  4. Non-invasive blood pressure
Performance Characteristics
Leak Rate:
0.2 sccm of air max. 		Response Time:
<20 msec cycling 		Pressure:
Up to 30 psi (0.20 MPa) 		Minimum Flow:
22 lpm at 30 psi (0.20 MPa) 		Orifice Sizes/Equivalent Cv:
0.060"/0.042 Cv

SRS
The 10mm SRS Series plastic solenoid valve converts a digital electrical signal into a digital pneumatic output. The SRS Series is constructed of engineering thermoplastics and non-corrosive metals to exceed the specifications demanded by critical applications in the life sciences.

Features
  • * Design incorporates thermoplastics and non-corrosive metals.
  • * Offers high-density manifold mounting with convenient manifold to PC board interface.
  • * Weighs only 0.23 ounces; perfect where low weight is critical to overall system.
  • * ROHS compliant.
Performance Characteristics:
Leak Rate:
<0.016 sccm (bubble tight) 		Response:
<30 msec cycling 		Pressure:
0 to 20 psi (0.13 MPa)
0 to 50 psi (0.34 MPa)
0 to 85 psi (0.58 MPa) 		Vacuum:
0-27 in Hg (0.09 MPa) 		Orifice Sizes/Equivalent Cv:
0.020"/0.0075 Cv
0.030"/0.017 Cv
0.045"/0.027 Cv

Series 11, 25, 26
Series 11, 25, and 26 PC mountable solenoid valves convert a digital electrical signal into a digital pneumatic output. The patented miniature design is preferred by medical and analytical OEMs worldwide and allows valves to be soldered directly onto a printed circuit board, providing both electrical termination and mechanical attachment. These valves power small cylinders directly or can be used to pilot larger valves that require high flow.

Features
  • * Offers discrete valve design with up to 200 million life cycle rating.
  • * Available in manifold mounting.
  • * Provides a range of electrical coil options, including PC mountable, spade lugs, or wire leads to simplify integration.
  • * Powerful enough for a range of uses that require high flow.
  • * ROHS compliant.
Performance Characteristics:
Leak Rate:
<0.016 sccm (bubble tight) 		Response:
<30 msec cycling (2 Watts) 		Pressure:
0 to 100 psi (0.69 MPa)
0 to 70 psi (0.48 MPa)
0 to 50 psi (0.34 MPa)
0 to 25 psi (0.17 MPa)
0 to 10 psi (0.07 MPa) 		Vacuum:
0-27 in Hg (0.09 MPa) 		Orifice Sizes/Equivalent Cv:
0.030"/0.017 Cv
0.050"/0.035 Cv

V2 Valve
The V2 valve offers a unique plastic body, which provides an economical solution without compromising on quality or reliability. Parker offers the versatile V2 in either a manifold mount design or with molded barbed fittings. This PC and manifold mountable solenoid valve converts a digital electrical signal into a digital pneumatic output.

Features
  • * Cost-effective, unique Polybutylene Terephthalate (PBT) body.
  • * Manifold mount design or molded barbed fittings to fit a range of needs.
  • * ROHS compliant.
Performance Characteristics:
Leak Rate:
<0.2 sccm 		Response:
<30 msec cycling (2 Watts) 		Pressure:
0 to 100 psi (0.69 MPa)
0 to 30 psi (0.20 MPa) 		Vacuum:
0-27 in Hg (0.09 MPa) 		Orifice Sizes/Equivalent Cv:
0.030"/0.017 Cv
0.050"/0.035 Cv

PND Series
The PND Series is a miniature, low cost, application-specific, 2-way Normally Open exhaust or "dump" valve. Perfect for safety oriented applications that require pressure relief to atmosphere upon power loss.

Features
  • * Normally Open exhaust valve in a small package size.
  • * Works well in miniature applications such as in Non-Invasive Blood Pressure (NIBP) devices.
  • * Provides small size and low cost.
  • * Offers low holding voltage.
  • * ROHS compliant.
  • * 250,000 cycles (worst case tested, no performance degradation)
  • * 0.050 Orifice comes standard with 2 M2 mounting holes.
Performance Characteristics:
Leak Rate:
<0.016 sccm (bubble tight) 		Response:
<100 msec cycling 		Pressure:
0 to 6 psi (0.04 MPa) holding 		Vacuum:
0-27 in Hg (0.09 MPa) 		Orifice Sizes/Equivalent Cv:
0.030"/0.017 Cv
0.050"/0.035 Cv

↑
