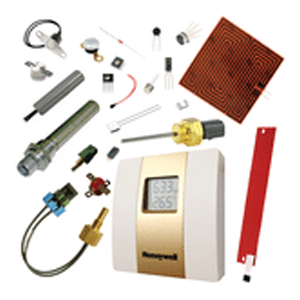

Humidity, Thermal & Flexible Heater Products



Honeywell offers a broad array of humidity, thermal and flexible heater products, each designed to provide enhanced reliability, repeatability, precision, and responsiveness:

    Humidity Sensors:

  • Humidity Sensors.
  • Wall Mount Transducers.


    Temperature Sensors and Thermal Sensing Elements:

  • RTD (Resistance Temperature Detector) Sensing Elements
  • Thermistor Sensing Elements
  • Packaged Temperature Probes


Thermostats/Thermal Switches



Flexible Heaters





HUMIDITY SENSORS:


Honeywell HumidIcon™ Digital Humidity/Temperature Sensors:


HIH6000 Series, HIH6100 Series, HIH7000 Series, HIH8000 Series HIH9000 Series:


Honeywell HumidIcon™ Digital Humidity/ Temperature Sensors are digital output-type relative humidity (RH) and temperature sensors combined in the same package. They are available in the following accuracies:

  • ±1.7 %RH (HIH9000 Series)
  • ±2.0 %RH (HIH8000 Series)
  • ±3.0 %RH (HIH7000 Series)
  • ±4.0 %RH (HIH6100 Series)
  • ±4.5 %RH (HIH6000 Series)



    HIH6000 Series, HIH6100 Series, HIH7000 Series, HIH8000 Series HIH9000 Series Benefits:


    Industry-leading long term stability minimizes system performance issues, helps support system uptime by eliminating the need to service or replace the sensor during its application life, and eliminates the need to regularly recalibrate the sensor in the application, which can be inconvenient and costly. Thermoset-polymer capacitive sensing element’s multilayer construction provides resistance to most application hazards such as condensation, dust, dirt, oil, and common environmental chemicals, which help provide industry leading reliability. Delivers the lowest total cost solution due to the sensor’s industry-leading combined humidity/temperature sensor. Allows the RH measurement to be temperature compensated and provides a second, standalone temperature sensor output which allows the user to purchase one sensor instead of two. Can operate down to 2.3 Vdc, which allows use in low energy and wireless-compatible applications to enhance energy savings and prolong system battery life. The sensor goes into sleep mode when not taking a measurement within the application, consuming only 1 μA versus 650 μA in full operation in a battery operated system; helps maximize battery life, reduces power supply size, and reduces the application’s overall weight. High 14-bit humidity sensor resolution and 14-bit temperature sensor resolution within the application help the user’s system detect the smallest relative humidity or temperature change.

    True, temperature-compensated digital I2C or SPI output typically allows the customer to remove the components associated with signal conditioning from the PCB to free up space and reduce costs associated with those components (e.g., acquisition, inventory, assembly), often eliminates problems that could occur from having multiple signal conditioning components across the PCB, as well as simplifies integration to the microprocessor, eliminating the need for customer-implemented, complex signal conditioning. Ultra-small size allows for flexibility of use within the application, occupies less space on the PCB, and typically simplifies placement on crowded PCBs or in small devices; industry standard design simplifies design-in. hydrophobic filter allows for use in many condensing environments. Tape and reel allows for use in high volume, automated pick-and-place manufacturing, eliminating lead misalignment to the PCB and helping the customer to reduce manufacturing costs. Wide operating temperature ranges allow for use in many applications. Optional one or two %RH level alarm outputs provide the ability to monitor whether the RH level has exceeded or fallen below pre-determined and critical levels within the application. Multi-function ASIC delivers flexibility within the application by lowering or eliminating the risk and cost of OEM calibration. May be used in such potential industrial applications as HVAC/R, air compressors, weather stations, telecom cabinets, incubators/microenvironments and in such potential medical apps such as respiratory therapy, incubators/microenvironments.

  1. HIH6000 Series, HIH6100 Series, HIH7000 Series, HIH8000 Series HIH9000 Series - Features:
    1. Industry-leading long term stability (1.2 %RH over five years), Industry-leading reliability (MTTF 9,312,507 HR),
    2. Lowest total cost solution, Combined humidity and temperature sensor, Energy efficient
    3. High resolution, True, temperature-compensated digital I2C or SPI output,
    4. SOIC-8 SMD (Surface Mount Device) and SIP 4 Pin housing styles, Available with or without hydrophobic filter and resistance,
    5. Ultra-small package, Industry-leading relative humidity accuracy, Tape and reel,
    6. Wide operating temperature ranges, Optional one or two %RH level alarm outputs,
    7. Multi-function ASIC, RoHS and WEEE compliant, halogen-free.




  2. Highly viable humidity sensing solutions:


    And every Honeywell S&PS sensor contains something no other supplier can offer: Honeywell engineering and expertise. This means an unparalleled feature and benefit set: A capacitive sensing die set in thermoset polymers interacts with platinum electrodes. Lasertrimmed sensors designed to offer stable, low-drift performance and enhanced accuracy with calibration. Absorption-based humidity sensors provide both temperature and %RH. Packages are chemically resistant and operate in wide temperature ranges performing in most harsh environments. Most importantly, Honeywell S&PS’s legendary engineering expertise, proven product dependability, global reach and support and superior technical support deliver the most critical advantage of all: reliable quality products for a lower total cost of ownership.



image image

Humidity Sensors Honeywell HumidIcon™ HIH6000 Series Honeywell HumidIcon™ HIH6100 Series
Description digital output-type relative humidity (RH) and temperature sensors combined in the same package
Humidity accuracy ±4.5 %RH typ. ±4.0 %RH typ.
Temperature accuracy (BFSL) ±0.5 °C ±0.5 °C
Operating temperature range -40 °C to 100 °C [-40 °F to 212 °F] -25 °C to 85 °C [-13 °F to 185 °F]
Hysteresis - -
Output I2C or SPI I2C or SPI
Package type SIP 4 Pin or SOIC-8 SMD SIP 4 Pin or SOIC-8 SMD
Response time 6 s typ. in 20 l/min airflow 6 s typ. in 20 l/min airflow
Long-term stability ±1.2 %RH for five years ±1.2 %RH for five years
Operating humidity range 0 %RH to 100 %RH 0 %RH to 100 %RH
Compensated humidity range 20 %RH to 80 %RH 10 %RH to 90 %RH
Moisture filter yes (some listings) yes (some listings)
Voltage supply 3.3 Vdc typ. 3.3 Vdc typ.





image image image

Humidity Sensors Honeywell HumidIcon™ HIH7000 Series Honeywell HumidIcon™ HIH8000 Series Honeywell HumidIcon™ HIH9000 Series
Description digital output-type relative humidity (RH) and temperature sensors combined in the same package
Humidity accuracy ±3.0 %RH typ. ±2.0 %RH typ. ±1.7 %RH typ.
Temperature accuracy (BFSL) ±0.5 °C ±0.5 °C ±0.3 °C
Operating temperature range -40 °C to 100 °C [-40 °F to 212 °F] -40 °C to 125 °C [-40 °F to 257 °F] -40 °C to 125 °C [-40 °F to 257 °F]
Hysteresis - - ±1.0 %RH
Output I2C or SPI I2C or SPI I2C or SPI
Package type SIP 4 Pin or SOIC-8 SMD SIP 4 Pin or SOIC-8 SMD SIP 4 Pin or SOIC-8 SMD
Response time 6 s typ. 20 l/min airflow 6 s typ. 20 l/min airflow 30 s max. 1/e slow moving air
Long-term stability ±1.2 %RH for five years ±1.2 %RH for five years ±1.2 %RH for five years
Operating humidity range 0 %RH to 100 %RH 0 %RH to 100 %RH 0 %RH to 100 %RH
Compensated humidity range 20 %RH to 80 %RH 10 %RH to 90 %RH 10 %RH to 90 %RH
Moisture filter yes (some listings) yes (some listings) yes (some listings)
Voltage supply 3.3 Vdc typ. 3.3 Vdc typ. 3.3 Vdc typ.






    HIH-5030/5031 Series Benefits:


    Instrumentation-quality sensing performance in a competitively priced, solderable surface mount device. Multilayer construction designed to provide enhanced resistance to wetting, dust, dirt, oils, and common environmental chemicals. Low current draw often ideal in most low drain, battery operated systems. Tight sensor interchangeability reduces or eliminates OEM production calibration costs. Tape and reel for high volume applications (optional). Available covered, filtered/unfiltered for application flexibility in high volume OEM condensing environments such as battery-powered systems, air compressors, HVAC, refrigeration, medical, office automation, telecommunications equipment, and weather meteorology equipment.

  1. HIH-5030/5031 Series - Features:
    1. Surface mount package, Voltage output, Operates at 2.7 Vdc to 5.5 Vdc,
    2. Laser-trimmed, Accurate, fast response, Molded thermoset plastic housing,
    3. Designed to be chemically resistant,Tape and reel, Accuracy of ±3 %RH.




  2. HIH-4000 Series Benefits:


    Instrumentation-quality RH sensing performance in a competitively priced, solderable SIP. Multilayer construction designed to provide excellent resistance to wetting, dust, dirt, oils and common environmental chemicals. Laser trimmed for stable, low drift performance (optional). Factory calibration data provides individually matched downstream electronics and accuracy.

  3. HIH-4000 Series - Features:
    1. Voltage output, Near linear voltage output vs %RH,
    2. Laser-trimmed, Accurate, fast response,
    3. Molded thermoset plastic housing, Chemically resistant,
    4. Accuracy of ±3.5 %RH, Voltage supply of 4 Vdc to 5.8 Vdc.





image image

Humidity Sensors HIH-5030 / 5031 Series HIH-4000 Series
Description covered, filtered or unfiltered integrated circuit integrated circuit
Output analog voltage analog voltage
Package type surface mount SIP (2,54 mm [0.100 in] or 1,27 mm [0.050 in] lead pitch)
Response time 5 s typ. 1/e in slow moving air 5 s typ. 1/e in slow moving air
Long-term stability 1.2 %RH for five years; 0.25 %RH each year 1.2 %RH for five years; 0.25 %RH each year
Operating temperature range -40 °C to 85 °C [-40 °F to 185 °F] -40 °C to 85 °C [-40 °F to 185 °F]
Operating humidity range 0 %RH to 100 %RH 0 %RH to 100 %RH
Moisture/dust filter yes (some listings) no
Cover/case yes no
Calibration and data printout no yes (some listings)
Accuracy ±3 %RH ±3.5 %RH
Voltage supply 2.7 Vdc to 5.5 Vdc 4 Vdc to 5.8 Vdc






    HIH-4010/4020/4021 Series Benefits:


    Instrumentation-quality RH sensing performance in a competitively priced, solderable packages. Multilayer construction provides enhanced resistance to wetting, dust, dirt, oils and common environmental chemicals. Laser trimmed for stable, low drift performance. Factory calibration data designed to provide individually matched downstream electronics and accuracy (available on all voltage output models). Available covered/ uncovered and filtered/unfiltered for application flexibility in high volume OEM condensing environments such as HVAC, refrigeration, medical, office automation, and telecommunications equipment.

  1. HIH-4010/4020/4021 Series - Features:
    1. Voltage output, Near linear voltage output vs %RH, Laser-trimmed,
    2. Accurate, fast response, Molded thermoset plastic housing,
    3. Designed to be chemically resistant, Accuracy of ±3.5 %RH,
    4. Voltage supply of 4 Vdc to 5.8 Vdc.




  2. HIH-4030/4031 Series Benefits:


    Instrumentation-quality sensing performance in a competitively priced, solderable surface mount device. Multilayer construction designed to provide enhanced resistance to wetting, dust, dirt, oils, and common environmental chemicals. Low current draw often ideal in most low drain, battery operated systems. Tight sensor interchangeability reduces or eliminates OEM production calibration costs. Tape and reel for high volume applications (optional). Factory calibration data designed to provide individually matched downstream electronics and accuracy. Available covered, filtered/ unfiltered for application flexibility in high volume OEM condensing environments such as HVAC, refrigeration, medical, office automation, and telecommunications equipment.

  3. HIH-4030/4031 Series - Features:
    1. Surface mount package, Voltage output, Near linear voltage output vs %RH,
    2. Laser-trimmed, Accurate, fast response, Molded thermoset plastic housing,
    3. Designed to be chemically resistant,Tape and reel, Accuracy of ±3.5 %RH,
    4. Voltage supply of 4 Vdc to 5.8 Vdc.






image image

Humidity Sensors HHIH-4010/ 4020/4021 Series HIH-4030 / 4031 Series
Description covered or uncovered, filtered or unfiltered integrated circuit covered, filtered or unfiltered integrated circuit
Output analog voltage analog voltage
Package type SIP (2,54 mm [0.100 in] or 1,27 mm [0.050 in] lead pitch) surface mount
Response time 5 s typ. 1/e in slow moving air 5 s typ. 1/e in slow moving air
Long-term stability 1.2 %RH for five years; 0.25 %RH each year 1.2 %RH for five years; 0.25 %RH each year
Operating temperature range -40 °C to 85 °C [-40 °F to 185 °F] -40 °C to 85 °C [-40 °F to 185 °F]
Operating humidity range 0 %RH to 100 %RH 0 %RH to 100 %RH
Moisture/dust filter yes (some listings) yes (some listings)
Cover/case yes (some listings) yes
Calibration and data printout yes (some listings) yes (some listings)
Accuracy ±3.5 %RH ±3.5 %RH
Voltage supply 4 Vdc to 5.8 Vdc 4 Vdc to 5.8 Vdc





    HIH-4602-A, C Series Benefits:


    Combine both relative humidity and temperature sensing for measuring dew point and other absolute moisture terms. Can-type housing designed to provide quick response while still maintaining robustness of enclosed component. Factory calibration data designed to provide individually matched downstream electronics and accuracy, standard. Laser trimmed for stable, low drift performance in potential applications such as HVAC, refrigeration, medical, office automation, telecommunications and meterology equipment.

  1. HIH-4602-A, C Series - Features:
    1. Humidity and temperature sensing in one package, Near linear voltage output vs %RH,
    2. Laser-trimmed, Accurate, fast response, Designed to be chemically resistant,
    3. Built-in static protection, Accuracy of ±3.5 %RH, Voltage supply of 4 Vdc to 5.8 Vdc,
    4. Stable, low drift performance, TO-5 can.




  2. HIH-4602-L, L-CP Series Benefits:


    Slotted can design allows for quick response while still maintaining robustness of enclosed components. Factory calibration data designed to provide individually matched downstream electronics and accuracy, optional. Laser trimmed for stable, low drift performance in potential applications such as refrigeration, drying, meterology equipment, battery-powered systems, and OEM (Original Equipment Manufacturer) assemblies.

  3. HIH-4602-L, L-CP Series - Features:
    1. Voltage output, Near linear voltage output vs %RH, Laser-trimmed,
    2. Accurate, fast response, Designed to be chemically resistant,
    3. Built-in static protection, Accuracy of ±3.5 %RH,
    4. Voltage supply of 4 Vdc to 5.8 Vdc, Stable, low drift performance, Slotted TO-5 can.





image image

Humidity Sensors HIH-4602-A, C HIH-4602-L, L-CP
Description monolithic IC with integral thermistor or precision RTD integrated circuit
Output analog voltage (for humidity) analog voltage
Package type TO-5 can slotted TO-5 can
Response time 50 s typ. 1/e in slow moving air 30 s typ. 1/e in slow moving air
Long-term stability 1.2 %RH for five years; 0.25 %RH each year 1.2 %RH for five years; 0.25 %RH each year
Operating temperature range -40 °C to 85 °C [-40 °F to 185 °F] -40 °C to 85 °C [-40 °F to 185 °F]
Operating humidity range 0 %RH to 100 %RH 0 %RH to 100 %RH
Moisture/dust filter yes (some listings) no
Cover/case yes yes
Calibration and data printout yes (some listings) yes (some listings)
Accuracy ±3.5 %RH ±3.5 %RH
Voltage supply 4 Vdc to 5.8 Vdc 4 Vdc to 5.8 Vdc





HUMIDITY SENSORS USED IN WALL MOUNT TRANSDUCERS (Asia-Pacific region only):


    SCT Series Benefits:


    Accurately and reliably senses humidity and temperature in the area to enhance user comfort. Enables customer to potentially reduce/eliminate transmitter recalibration cost. Supports and optimizes system accuracy and uptime. Enhanced stability over next best alternatives. Humidity sensor element’s multilayer construction provides resistance to most application hazards such as dust, dirt, condensation, oils and common environmental chemicals. Potential industrial applications include climate monitoring and control for residential and office buildings, production and manufacturing plants, storerooms, equipment cabinets, and testing environments.

  1. SCT Series - Features:
    1. Utilize Honeywell HumidIcon™ humidity/temperature sensors,
    2. Optional LCD display shows ambient temperature with relative humidity or dew point,
    3. True temperature-compensated humidity element, Enhanced accuracy,
    4. Longterm stability, Enhanced reliability, Standard humidity output,
    5. Costeffective, Choice of silver or gold cover trim,
    6. Full 0 %RH to 100 %RH measurement range.






Humidity Sensors Used in Wall Mount Transducers (Asia-Pacific Region Only) SCT Series
Description humidity and temperature wall mount transducer using Honeywell HumidIcon™ humidity/temperature sensor
Humidity measurement range 0 % RH to 100 %RH non-condensation
Humidity accuracy ±4 %RH (25 °C [77 °F], 10 %RH to 90 %RH)
±5 %RH (5 °C to 50 °C [41 °F to 122 °F], 10 %RH to 90 %RH)
Temperature measurement range -5 °C to 55 °C [13 °F to 131 °F]
0 °C to 70 °C [32 °F to 158 °F]
-25 °C to 60 °C [-13 °F to 140 °F]
-25 °C to 60 °C [-13 °F to 140 °F]
Temperature accuracy ±0.5 °C, ±0.3 °C, ±0.2 °C, or ±1 °C (depending on type of internal sensor used)
Long term drift ±0.05 %RH typ. and ±1.2 %RH max. at 50 %RH for 5 years stability
Operating temperature range -20 °C to 70 °C [-4 °F to 158 °F] (units with LDC display)
-25 °C to 85 °C [-13 °F to 185 °F] (units without LDC display)
Voltage supply 24 Vdc ±10%, 50 mA max. (units with 4 mA to 20 mA output)
18 Vdc to 40 Vdc, 15 mA max. or 24 Vac ±15%, 50/60 Hz, 50 mA max (units with 0 V to 10 V output)





TEMPERATURE SENSORS & THERMAL SENSING ELEMENTS:


PACKAGED TEMPERATURE PROBES:


    LTP Series Benefits:


    Durable, closed-tip design maximizes reliability in harsh applications. Sensor’s thermistor sensing element effectively senses gases, liquids or solids because of its enhanced sensitivity, accuracy and reliability. Easy-to-install threaded mounting provides reliable operation in harsh environments. Numerous options—from mechanical and electrical interface—simplify installation, allow customers to meet specific application needs, and facilitate backwards compatibility with most existing applications. Zero NRE (non-recurring engineering) costs for configurations. Reduces cost of ownership due to BOM (bill of materials), engineering, testing, NRE and tooling. Reduces design costs due to plug-and-play options, backwards integration, flexible offering, customization and non-standard offering. Potential transportation applications include temperature sensing for ambient air, automatic transmission systems, engine air inlet systems, engine cooling systems, engine lubrication systems, fuel systems, Haldex coupling systems, and hydraulic pump systems.

  1. LTP Series - Features:
    1. Response time [T63.2% of 25°C to 85 °C step]: stirred silicon oil <15 s; stirred water <15 s; air flow 10 m/s <20 s,
    2. Accuracy: -40 °C to 25 °C [-40 °F to 77°F]: ±2.5 °C, 25 °C to 100 °C [77 °F to 212°F]: ±0.8 °C, 100 °C to 125 °C [212 °F to 257 °F]: ±2.0 °C, 125 °C to 150 °C [257 °F to 302 °F]: ±3.5 °C,
    3. Electrical interfaces are Bosch Kompakt, Delphi Metri-Pack 150 Series, AMP Seal 16, AMP Minitimer, AMP Superseal, and Deutsch DT04-2P,
    4. Probe length options: 20 mm to 50 mm (other lengths available upon request),
    5. Retainer ring with hex provides complete location for socket wrench in axial and radial directions, enabling the operator to first locate the sensor inside the socket freely and more easily install the sensor,
    6. Ingress protection: IP67, Vibration of 30g sine wave,10 Hz to 2000 Hz, Mechanical shock of 50 g, Service pressure: 10 bar,
    7. Burst pressure: 40 bar, Wire harness (with or without a connector) or other sensing elements (PTC or RTD) available upon request.




  2. R300 Series Benefits:


    Robust, stainless steel closedtip design for reliability in most aggressive environments, while still providing enhanced response time. One-piece sensor with integral connector for potential use in heavy duty vehicle engine exhaust gas recirculation systems, fluid or air temperature sensing within the engine environment or HVAC, or refrigeration compressor equipment.

  3. R300 Series - Features:
    1. Wide temperature-range, Stainless steel construction,
    2. Enhanced response time, Enhanced accuracy,
    3. Enhanced reliability, Linear output, Extended life.




  4. Products for thousands of potential applications:


    Honeywell S&PS temperature sensors provide multiple choices.

    Packaged Temperature Probes:


    These responsive sensors are often ideal for fluid, surface, and air/ gas temperature sensing. Honeywell’s temperature probes are offered in a variety of housing materials and styles, terminations and R-T curve types, depending on customers’ application needs. Honeywell’s packaged temperature probe assemblies incorporate either NTC (negative temperature coefficient) thermistors or RTD (resistance temperature detector) technology and operate under a wide range of environmental conditions. Whether it be an IP67 seal rated oil temperature sensor used in the engine of a heavy duty vehicle, a surface temperature sensor used to monitor critical compressor temperatures in a transport refrigeration system, or an air temperature sensor rated to MIL-PRF-23648 used to measure aircraft engine bleed air temperature inside the leading edge of an aircraft wing, Honeywell has the right technology, sensor packaging, testing, track record and application expertise to provide the right sensor solution for its customers. Customers trust and depend on Honeywell temperature sensors every day for their precision, stability, reliability and quality.

    Discrete and Packaged RTD Sensors:


    Our platinum-based RTDs are laser-trimmed for accuracy and flexibility — designed to offer stable and fast linear outputs, accurate and interchangeable, plus plastic and ceramic, miniaturized and surface mount housings (including printed circuit board termination). Potential applications include motor overload and semiconductor protection, electronic assembly thermal management and temperature compensation, as well as HVAC equipment.

    Discrete Thermistors:


    These sensors don’t amplify, rectify, polarize or generate a signal, but rather change resistance with any change in temperature. The change can occur in the surrounding temperature or by passing a current through the thermistor to self-heat.





image image

Packaged Temperature Probes LTP Series R300 Series
Temperature sensing type immersion/air-gas immersion
Sensing element NTC RTD
Accuracy -40 °C to 25 °C [-40 °F to 77 °F]: ±2.5 °C
25 °C to 100 °C [77 °F to 212 °F]: ±0.8 °C
100 °C to 125 °C [212 °F to 257 °F]: ±2.0 °C
125 °C to 150 °C [257 °F to 302 °F]: ±3.5 °C
better than ±3.0 °C from -40 °C to 300 °C typ.
Nominal resistance at 25 °C [77 °F] 1000 Ohm, 2252 Ohm, 2057 Ohm, 2795 Ohm 100 Ohm
Operating temperature range -40 °C to 150 °C [-40 °F to 302 °F] -40 °C to 275 °C [-40 °F to 572 °F] continuous, excursion to 300 °C [572 °F] for 10 min. max.
Housing material brass hex, stainless steel probe tip stainless steel
Electrical and mechanical interface Bosch Kompakt, Delphi Metri-Pack 150 Series, AMP Seal 16, AMP Minitimer, AMP Superseal, and Deutsch DT04-2P; M10 to M18, 3/4 UNF, or G 1/4 threads, two hex options overmolded connector with M14 x 1.50 thread






    ES110 Series Benefits:


    Overmolded, hexagonal shape for easy installation. Two end configurations available, depending on response or degree of protection required. All-plastic design reduces heat loss through the sensor. Exposed thermistor offers fast response for air/gas sensing, especially for potential transportation engine management systems and industrial applications.

  1. ES110 Series - Features:
    1. Exposed thermistor, Rugged design, Brass encapsulation,
    2. Plastic overmold, Enhanced response time,
    3. Wide operating temperature range.




  2. ES120 Series Benefits:


    Overmolded, hexagonal shape for easy installation. All-plastic design reduces heat loss through the sensor. Enclosed thermistor may potentially be used for liquid temperature sensing in engine management systems and industrial applications.

  3. ES120 Series - Features:
    1. Enclosed thermistor, Rugged design,
    2. Brass encapsulation, Plastic overmold,
    3. Wide operating temperature range.





image image

Packaged Temperature Probes ES110 Series ES120 Series
Temperature sensing type air/gas immersion
Sensing element NTC NTC or KTY
Nominal resistance at 25 °C [77 °F] 2000 Ohm 2000 Ohm
Operating temperature range -40 °C to 150 °C [-40 °F to 302 °F] -40 °C to 150 °C [-40 °F to 302 °F]
Housing material brass brass
Electrical and mechanical interface overmolded connector with M10x1.25 or M12 x 1.50 thread overmolded connector with M10x1.25, M14 x 1.50 thread or 1/8 PTF





    6655 Series Benefits:


    Offers temperature measurements with enhanced response and accuracy on most flat surfaces and pipes in non-condensing applications. Allows greater flexibility in temperature monitoring and controlling. Tight interchangeability eliminates or reduces need for calibration. A wide operating temperature range allows application flexibility. Potential applications include water heaters and boilers, industrial ovens and ranges, copier diffuser rollers, and HVAC compressor or duct temperature sensing.

  1. 6655 Series - Features:
    1. Air/surface temperature sensing, NTC thermistor output, Low cost,
    2. Low, compact profile, Tight interchangeability, Enhanced accuracy,
    3. Enhanced response time, Wide operating temperature range,
    4. Variety of mounting brackets, Widely used sensor package footprint,
    5. Enhanced stability/ low drift.




  2. 500 Series Benefits:


    Housing material ranges from all plastic to all-metal, and accommodates air/gas, fluid immersion or surface sensing requirements. Full range of custom or off the shelf thermistor and RTD-based solutions for a wide variety of potential industrial, transportation, and aerospace applications.

  3. 500 Series - Features:
    1. Choice of custom or existing designs,
    2. Wide selection of housing, resistance, and termination options,
    3. Wide operating temperature range.





image image

Packaged Temperature Probes 6655 Series 500 Series
Temperature sensing type air/surface air/gas, immersion, surface, and liquid level
Sensing element NTC NTC
Nominal resistance at 25 °C [77 °F] 10,000 Ohm, 12,000 Ohm 200 Ohm to 1,000,000 Ohm (inclusive)
Operating temperature range -20 °C to 110 °C [-4 °F to 230 °F] -60 °C to 300 °C [-76 °F to 572 °F] (inclusive)
Housing material phenolic plastic, aluminum, stainless steel, epoxy filled, tin- or nickel-plated copper, ceramic or kynar-filled tubing
Electrical and mechanical interface quick connect terminal: (90°, 0.25 in), (0°, 0.25 in), (45°, 0.25 in), (90°, 0.1875 in) wide variety of connectors and lead types, materials and insulation





DISCRETE RTD SENSORS:


    HEL-705, 707, 710 Series Benefits:


    Fully assembled and ready to use without need for fragile splices to extension leads. Wide temperature range covers most potential applications such as HVAC, electronic assemblies and process control.

  1. HEL-705, 707, 710 Series - Features:
    1. Linear resistance vs. temperature, Accurate and interchangeable,
    2. Enhanced stability, Teflon or fiberglass lead wires,
    3. Wide temperature range, Ceramic case material, Multiple sizes.




  2. HEL-775 Series Benefits:


    Ceramic SIP package with solderable leads provides strong connections for wires or printed circuits. Ideal for PCBs, temperature probes and other lower temperature applications including HVAC, electronic assemblies and process control applications.

  3. HEL-775 Series - Features:
    1. Linear resistance vs. temperature, Accurate and interchangeable,
    2. Enhanced stability, Thin film platinum, Ceramic SIP package,
    3. Solderable leads, Small size.





image image

Discrete RTD Sensors HEL-705, 707, 710 Series HEL-775 Series
Sensor type 100 Ohm, 1000 Ohm platinum RTD 100 Ohm, 1000 Ohm platinum RTD
Temperature coeffiecient 0.00385 Ohm/Ohm/°C, 0.00375 Ohm/ Ohm/°C 0.00385 Ohm/Ohm/°C, 0.00375 Ohm/ Ohm/°C
Temperature sensing range TFE Teflon: -70° to +260°C (-94° to +500°F)
fiberglass: -75° to +500°C (-100° to +932°F)
-55 °C to 150 °C [-67 °F to 302 °F]
Packaging type alumina tube ceramic case
Termination 28 ga. or 24 ga. leadwire SIP
Base resistance and interchangeability 100 Ohm ±1; 0.6 Ohm at 0 °C,
100 Ohm ±1; 1.2 Ohm at 0 °C,
1000 Ohm ±1; 0.6 Ohm at 0 °C,
1000 Ohm ±1; 1.2 Ohm at 0 °C
100 Ohm ±1; 0.6 Ohm at 0 °C,
100 Ohm ±1; 1.2 Ohm at 0 °C,
1000 Ohm ±1; 0.6 Ohm at 0 °C,
1000 Ohm ±1; 1.2 Ohm at 0 °C
Self-heating <15 mW/°C for 0.85 O.D. typ. <6,8 mW/°C typ.,
9,7 mW/°C typ.





    HEL-777/776 Series Benefits:


    Molded plastic SIP package with solderable leads provides strong connections for wires or printed circuits. 1000 Ohm, 375 alpha version provides 10X greater sensitivity and signal to noise. Ideal for PCBs, temperature probes, or other potential applications including HVAC, electronic assemblies and process control.

  1. HEL-777/776 Series - Features:
    1. Linear resistance vs. temperature, Accurate and interchangeable,
    2. Enhanced stability, Thin film platinum, Molded plastic SIP package,
    3. Solderable leads, Small size.




  2. 700 Series Benefits:


    Economical, miniature temperature sensors available in two sizes each of leaded and surface mount configurations. Surface mount in industry standard 0805 and 1206 packages. 100 Ohm and 1000 Ohm base resistance in both 3850 ppm/K and 3750 ppm/K temperature coefficients (385 and 375 alphas). Tolerances meet DIN class A, DIN class B and DIN class 2B industry standards. Wide temperature range covers most potential applications. Including HVAC, electronic assemblies, thermal management and process control.

  3. 700 Series - Features:
    1. Linear resistance vs. temperature, Enhanced accuracy,
    2. Interchangeability, Surface mount versions, Enhanced stability,
    3. Enhanced time response, Wide temperature range, Cost effective.





image image

Discrete RTD Sensors HEL-777/776 Series 700 Series
Sensor type 100 Ohm, 1000 Ohm platinum RTD 100 Ohm, 1000 Ohm platinum RTD
Temperature coeffiecient 0.00385 Ohm/Ohm/°C, 0.00375 Ohm/Ohm/°C 0.00385 Ohm/Ohm/°C, 0.00375 Ohm/Ohm/°C
Temperature sensing range -55 °C to 150 °C [-67 °F to 302 °F] -70 °C to 500 °C [-94 °F to 932 °F] lead version: -50 °C to 130 °C [-58 °F to 266 °F]
Packaging type molded plastic radial chip or surface mount axial flip chip
Termination SIP leadwires or solderpads
Base resistance and interchangeability 100 Ohm ±1; 0.6 Ohm at 0 °C,
100 Ohm ±1; 1.2 Ohm at 0 °C,
1000 Ohm ±1; 0.6 Ohm at 0 °C,
1000 Ohm ±1; 1.2 Ohm at 0 °C
100 Ohm ±1; 0.6 Ohm at 0 °C,
100 Ohm ±1; 1.2 Ohm at 0 °C,
1000 Ohm ±1; 0.6 Ohm at 0 °C,
1000 Ohm ±1; 1.2 Ohm at 0 °C
Self-heating <15 mW/°C typ. 0,4k /mW, 0.6k /mW or 0.8k/mW at 0 °C [32 °F]





    HRTS Series Benefits:


    Fully assembled and ready to use without need for fragile splices to extension leads. Wide temperature range covers most potential applications including HVAC, electronic assemblies and process control applications.

  1. HRTS Series - Features:
    1. Linear resistance vs. temperature,
    2. Resistance interchangeable,
    3. Accurate, Fast, Laser trimmed,
    4. Wide temperature range.




  2. TD Series Benefits:


    Provide 8 Ohm/°C sensitivity with inherently near linear output. Completely interchangeable without sensor to sensor recalibration. Silicon chip sensing element with proven thin film processing reliability. Individually laser trimmed. TD4A environmentally sealed liquid temperature sensors simple to install. TD5A miniature temperature sensors used where space is at a premium. Very small thermal mass for rapid response to temperature changes in potential industrial applications including HVAC, semiconductor protection, and process control.

  3. TD Series - Features:
    1. Linear resistance vs. temperature,
    2. Interchangeable without recalibration,
    3. Thin film, Laser trimmed, Long term stability,
    4. Air or liquid temperature sensing, Cost effective.





image image

Discrete and Packaged RTD Sensors HRTS Series TD Series
Sensor type 100 Ohm, 1000 Ohm platinum RTD 2000 Ohm silicon resistive element
Temperature coeffiecient 0.00385 Ohm/Ohm/°C, 0.00375 Ohm/Ohm/°C N/A
Temperature sensing range -70 °C to 260 °C [-94 °F to 500 °F] -40 °C to 150 °C [-40 °F to 302 °F]
Packaging type ceramic case plastic or threaded aluminum case
Termination leadwires SIP or leadwires
Base resistance and interchangeability 100 Ohm ±1; 0.6 Ohm at 0 °C,
100 Ohm ±1; 1.2 Ohm at 0 °C,
1000 Ohm ±1; 0.6 Ohm at 0 °C,
1000 Ohm ±1; 1.2 Ohm at 0 °C
R2000 Ohm ±5 Ohm at 20 °C
Self-heating <0,3 mW/°C typ. N/A





DISCRETE THERMISTORS:


    111 Series Benefits:


    Highly sensitive to electric power. Potential for use in self heat applications such as gas flow measurement and thermal conductivity analysis. Micro size for use in extremely small application spaces, such as medical assemblies.

  1. 111 Series - Features:
    1. Enhanced response time, Hermetically sealed in glass,
    2. Enhanced long-term stability, Micro size,
    3. Relatively uniform size, Weldable platinum iridium leads.




  2. 112 Series Benefits:


    Small sensors designed to provide maximum stability for potential low cost, general purpose temperature measurement and control applications as well as most stringent military and aerospace applications.

  3. 112 Series - Features:
    1. Enhanced response time, Hermetically sealed in glass,
    2. Enhanced long-term stability, Small size, Meets MIL-T-23648,
    3. Weldable platinum iridium leads.




  4. 115 Series Benefits:


    Two beads, each bead mounted to a special hermetically-sealed header. Use higher resistance units at higher ambient temperatures for maximum sensitivity. Potential for use in gas chromatography, thermal conductivity gas analysis instruments, medical and military/ aerospace applications.

  5. 115 Series - Features:
    1. E-I matched in air or helium, Resistance matched at 25 °C [77 °F],
    2. Interchangeable pairs, Extended life,
    3. Compression-type glass hermetic seal, High pressure solder seal.





image image image

Discrete Thermistors 111 Series 112 Series 115 Series
Description small, hermetically-sealed glass bead large, hermetically-sealed glass bead E-I tested and matched beads on header assembly
Operating temperature range -60 °C to 300 °C [-76 °F to 572 °F] -60 °C to 300 °C [-76 °F to 572 °F] -60 °C to 300 °C [-76 °F to 572 °F]
Dissipation constant in still air 0,1 mW/°C 0,4 mW/°C varies with assembly type
Time constant in air 0.5 s 4.0 s 0.5 s
Nominal resistance at [25 °F to 77 °F] 1,000 Ohm, 2,000 Ohm, 8,000 Ohm,
10,000 Ohm, 100,000 Ohm
200 Ohm, 500 Ohm, 1,000 Ohm, 2,000
Ohm, 5,000 Ohm, 10,000 Ohm, 50,000
Ohm, 100,000 Ohm, 500,000 Ohm,
2,000,000 Ohm
2,000 Ohm, 8,000 Ohm
Maximum diameter 0,36 mm [0.014 in] 1,14 mm [0.045 in] 0,36 mm [0.014 in]
Termination material platinum iridium platinum iridium glass to metal header
Lead length 9,6 mm [0.375 in] 9,6 mm [0.375 in] 31,75 mm [1.25 in]





    120 Series Benefits:


    Shock resistant, rugged, glass encapsulated units often ideal for immersion in fluid and convenient for mounting in air sensing assemblies. Extremely reliable. Wide variety of potential military and aerospace applications.

  1. 120 Series - Features:
    1. Hermetically sealed in glass,
    2. Enhanced reliability and stablility,
    3. Weldable/solderable dumet leads.




  2. 121 Series Benefits:


    Shock resistant, rugged, glass encapsulated units often ideal for immersion in fluid and convenient for mounting in air sensor sensing assemblies. Enhanced reliability. Potential for use in a wide variety of military and aerospace applications.

  3. 121 Series - Features:
    1. Hermetically sealed in glass,
    2. Enhanced reliability and stablility,
    3. Weldable/solderable dumet leads.





image image

Discrete Thermistors 120 Series 121 Series
Description mini glass probe standard glass probe
Operating temperature range -60 °C to 300 °C [-76 °F to 572 °F] -60 °C to 300 °C [-76 °F to 572 °F]
Dissipation constant in still air 0,7 mW/°C, 1,0 mW/°C 1,0 mW/°C
Time constant in air 10.0 s 22.0 s
Nominal resistance at [25 °F to 77 °F] 1,000 Ohm, 2,000 Ohm, 10,000 Ohm 2,000 Ohm, 5,000 Ohm, 10,000 Ohm, 50,000 Ohm, 100,000 Ohm, 1,000,000 Ohm
Maximum diameter 1,5 mm [0.060 in] 2,54 mm [0.10 in]
Termination material dumet dumet
Lead length 31,8 mm [1.25 in] 50,8 mm [2.00 in]





    126 Series Benefits:


    May be selected to tolerances only limited to the system’s capability available to test them. Precision sensing elements used where curve-matched interchangeability is required for precise temperature control and precision temperature indication.

  1. 126 Series - Features:
    1. Hermetically sealed in glass, Interchangeability,
    2. Accuracy, Enhanced sensitivity, Enhanced stability,
    3. Enhanced reliability, Small size, Cost effective.




  2. 128 Series Benefits:


    Miniature size for applications where space is at a premium. May be selected to tolerances only limited to the system’s capability available to test them. Precision sensing elements for where curve-matched interchangeability is required for precise temperature control and precision temperature indication such as military, aerospace, medical, and instrumentation test equipment.

  3. 128 Series - Features:
    1. Hermetically sealed in glass, Interchangeability,
    2. Accuracy, Enhanced sensitivity, stability and reliability,
    3. Miniature size, Cost effective.




  4. 129 Series Benefits:


    May be selected to tolerances only limited to the system’s capability available to test them. Precision sensing elements for where curve-matched interchangeability is required for precise temperature control and precision temperature indication such as military, aerospace, medical and instrumentation test equipment.

  5. 129 Series - Features:
    1. Interchangeability, Accuracy,
    2. Enhanced sensitivity, stability and reliability,
    3. Small size, Cost effective.





image image image

Discrete Thermistors 126 Series 128 Series 129 Series
Description matched large glass bead matched mini glass probe matched large glass probe
Operating temperature range -60 °C to 300 °C [-76 °F to 572 °F] -60 °C to 300 °C [-76 °F to 572 °F] -60 °C to 300 °C [-76 °F to 572 °F]
Dissipation constant in still air 0,8 mW/°C 2,1 mW/°C 3,0 mW/°C
Time constant in air 4.0 s 10.0 s 22.0 s
Nominal resistance at [25 °F to 77 °F] 2,000 Ohm; 100,000 Ohm 2,000 Ohm; 15,000 Ohm 2,000 Ohm; 4,000 Ohm
Maximum diameter 2,54 mm [0.10 in] 3,05 mm [0.120 in] 5,08 mm [0.20 in]
Termination material platinum iridium dumet dumet
Lead length 9,6 mm [0.375 in] 31,8 mm [1.25 in] 50,8 mm [2.00 in]





    135 Series Benefits:


    Uniform dimensions and tape and reel for automated assembly. Rugged sensor designed for potential high-volume, cost-sensitive applications that demand enhanced reliability.

  1. 135 Series - Features:
    1. Rugged DO-35 glass encapsulation,
    2. Enhanced temperature capability,
    3. Enhanced reliability, Uniform dimensions,
    4. Tape and reel, Cost effective.




  2. 140/142 Series Benefits:


    Broad range of custom resistance values and R/T curves. Potential applications include low-cost applications with a maximum temperature of 150 °C [302 °F].

  3. 140/142 Series - Features:
    1. Cost effective, PC board mountable,
    2. Rugged design, Versatile,
    3. Solderable leads.




  4. 143 Series Benefits:


    Broad range of custom resistance values and R/T curves. Potentially for use in high-volume, costsensitive applications.

  5. 143 Series - Features:
    1. Rugged design,
    2. PC board mountable,
    3. Solderable leads, Cost effective.





image image image

Discrete Thermistors 135 Series 140 / 142 Series 143 Series
Description glass encapsulated chip, DO-35 type disc disc
Operating temperature range -60 °C to 300 °C [-76 °F to 572 °F] -60 °C to 150 °C [-76 °F to 302 °F] -60 °C to 150 °C [-76 °F to 302 °F]
Dissipation constant in still air 2,5 mW/°C 3,0 mW/°C / 4,0 mW/°C 5 to 7 mW/°C
Time constant in air 4.0 s 10.0 s 16.0 s
Nominal resistance at [25 °F to 77 °F] 1,000 Ohm; 2,000 Ohm; 5,000 Ohm;
10,000 Ohm; 20,000 Ohm; 25,000 Ohm;
30,000 Ohm; 47,000 Ohm; 50,000 Ohm;
100,000 Ohm; 200,000 Ohm; 230,000
Ohm; 500,000 Ohm; 1,000,000 Ohm;
5,000,000 Ohm
500 Ohm; 1,000 Ohm; 3,000 Ohm; 5,000
Ohm; 8,000 Ohm; 10,000 Ohm; 25,000
Ohm; 100,000 Ohm
100 Ohm; 200 Ohm; 1,000 Ohm;
3,000 Ohm; 5,000 Ohm; 30,000 Ohm
Maximum diameter 2,0 mm [0.080 in] 2,54 mm [0.10 in] 5,08 mm [0.20 in]
Termination material tinned copper-clad steel tinned copper tinned copper
Lead length 28,6 mm [1.125 in] 38,1 mm [1.50 in] 38,1 mm [1.50 in]





    173 Series Benefits:


    Surface mount for automated pick and place. Tape and reel for high volume applications such as PC boards. Glass-coated ceramic designed for long term reliability. Solder-plated Ni-barrier terminations easy to solder. Potential for use in high-volume, cost-sensitive applications.

  1. 173 Series - Features:
    1. Surface mount, Tape and reel,
    2. Glass-coated ceramic, Solder-plated Ni,
    3. 0805 EIA package, Cost effective.




  2. 175 Series Benefits:


    Surface mount for automated pick and place. Tape and reel for high volume applications such as PC boards. Glass-coated ceramic design for long term reliability. Solder-plated Ni-barrier terminations easy to solder. Potential for use in high-volume, cost-sensitive applications.

  3. 175 Series - Features:
    1. Surface mount, Tape and reel,
    2. Glass-coated ceramic, Solder-plated Ni,
    3. 1206 EIA package, Cost effective.





image image

Discrete Thermistors 173 Series 175 Series
Description EIA 0805 surface mount, end-banded EIA 1206 surface mount, end-banded
Operating temperature range -60 °C to 125 °C [-76 °F to 257 °F] -60 °C to 125 °C [-76 °F to 257 °F]
Dissipation constant in still air 3,5 mW/°C 3,5 mW/°C
Time constant in air 10.0 s 10.0 s
Nominal resistance at [25 °F to 77 °F] 500 Ohm, 5,000 Ohm, 10,000 Ohm, 22,000 Ohm, 33,000 Ohm, 47,000 Ohm, 50,000 Ohm, 100,000 Ohm 5,000 Ohm, 10,000 Ohm, 50,000 Ohm, 100,000 Ohm, 440,000 Ohm
Maximum diameter EIA 0805 SMD EIA 1206 SMD
Termination material solder plated NI barrier solder plated NI barrier
Lead length N/A N/A





    192 Series Benefits:


    Resistance temperaturematched interchangeable units designed to provide cost savings by eliminating need for individual resistance temperature calibration and standardization of circuit components. Designed to simplify design and replacement in temperature measurement, indication, control and compensation of ambient temperature effects on a variety of integrated circuits and other semiconductor devices.

  1. 192 Series - Features:
    1. Resistance temperature curve interchangeability,
    2. Accuracy, Enhanced stability, Enhanced life,
    3. Cost effective, Small size, Epoxy coated.




  2. 194 Series Benefits:


    Resistance temperature matched interchangeable units designed to provide cost savings by eliminating need for individual resistance temperature calibration and standardization of circuit components. Simplifies design and replacement in temperature measurement, indication, control and compensation of ambient temperature effects on a variety of integrated circuits and other semiconductor devices.

  3. 194 Series - Features:
    1. Resistance temperature curve interchangeability,
    2. Accuracy, Enhanced stability, Enhanced life,
    3. Cost effective, Small size, Epoxy coated, Tefloncoated leads.





image image

Discrete Thermistors 192 Series 194 Series
Description Uni-Curve with bare leads and epoxy Uni-Curve with insulated leads and epoxy
Operating temperature range -60 °C to 150 °C [-76 °F to 302 °F] -60 °C to 150 °C [-76 °F to 302 °F]
Dissipation constant in still air 0,75 mW/°C 0,75 mW/°C
Time constant in air 15.0 s 15.0 s
Nominal resistance at [25 °F to 77 °F] 500 Ohm, 1,000 Ohm, 2,252 Ohm,
3,000 Ohm, 5,000 Ohm, 10,000 Ohm, 30,000 Ohm,
50,000 Ohm, 100,000 Ohm
2,252 Ohm, 3,000 Ohm, 5,000 Ohm, 10,000 Ohm,
30,000 Ohm, 100,000 Ohm, 50,000 Ohm
Maximum diameter 2,413 mm [0.095 in] 2,413 mm [0.095 in]
Termination material tinned copper, alloy 180 solid nickel, Teflon insulated
Lead length 38,1 mm [1.50 in] 38,1 mm [1.50 in]





    197 Series Benefits:


    Broad range of custom resistance and R/T values for potential applications including communications, medical, office automation, instrumentation test equipment, and aerospace electronics.

  1. 197 Series - Features:
    1. Rapid response times,
    2. Small size,
    3. Epoxy coated.




  2. ICL Series Benefits:


    Designed to prevent damage to other electrical components. ICL absorbs electrical surge and the thermisotor’s resistance decreases by a factor of 10 to 50; power drop across the ICL is reduced accordingly. For use in potential applications where the inrush of current can damage components in a switching power supply and other power devices when the equipment is turned on.

  3. ICL Series - Features:
    1. Cost effective, Enhanced reliability,
    2. Special high temp protective coating,
    3. Rugged design, PCB board mountable.





image image

Discrete Thermistors 197 Series ICL Series
Description chip with bare leads and epoxy inrush current limiter
Operating temperature range -60 °C to 125 °C [-76 °F to 257 °F] -40 °C to 185 °C [-40 °F to 365 °F]
Dissipation constant in still air 0,75 mW/°C 12.7 mW/°C to 23 mW/°C
Time constant in air 15.0 s 32 s to 93 s
Nominal resistance at [25 °F to 77 °F] 300 Ohm, 1,000 Ohm, 3,000 Ohm,
5,000 Ohm, 10,000 Ohm, 50,000 Ohm, 100,000 Ohm
0.5 Ohm to 220 Ohm +/- 20 %
Maximum diameter 2,413 mm [0.095 in] 9.5 mm [0.374 in] to 32 mm [1.26 in]
Termination material tinned copper, alloy 180 tinned copper
Lead length 38,1 mm [1.50 in] 1 in min.





THERMOSTATS/THERMAL SWITCHES:


COMMERCIAL THERMOSTATS:


    2450A Series Benefits:


    Gold alloy contacts for low voltage fire alarm, smoke detector and potential security device applications. Small size allows enhanced response to temperature changes. Epoxy sealed for extended life. Available with or without heat collectors. Potential for use in office copy machines, heat and smoke detectors, HVAC equipment, computers, aircraft/aerospace, radar equipment, medical equipment, and electronic control systems.

  1. 2450A Series - Features:
    1. Cost effective, Gold alloy contacts,
    2. Epoxy-sealed cap and terminals,
    3. Wide variety of terminals,
    4. Only a stepped aluminum cap - 15’ spacing, 1” collector for 30’ spacing, and a 1.5” collector for 50’ spacing. Collector brackets available per UL.




  2. 2450CM Series Benefits:


    Small size allows enhanced response to temperature changes. Potential for use in high current HVAC, appliance, hot water heater and office automation applications.

  3. 2450CM Series - Features:
    1. Cost effective,
    2. Rivet sleeve construction,
    3. Wide variety of mounting brackets and terminals.




  4. 2450CMG Series Benefits:


    Small size allows enhanced response to temperature changes. Gold alloy contacts for potential use in low voltage HVAC, appliances, hot water heater and office automation applications.

  5. 2450CMG Series - Features:
    1. Cost effective, Gold alloy contacts,
    2. Rivet sleeve construction,
    3. Wide variety of mounting brackets and terminals.




  6. Well over 5,000 reasons to choose Honeywell:


    With over 5,000 quality components in our thermostat line, we meet any domestic or international need for commercial or precision snap action solutions.

    Commercial thermostats:


    You’ll find Honeywell quality in a wide array of small and major appliances, automotive applications, office copy machines and HVAC equipment, plus heat and smoke detectors. Whether it’s military or aerospace industries, or your office building, each Honeywell S&C thermostat can be designed to offer the performance and reliability you demand, and the service you need.

    Precision thermostats:


    A highly reliable lineup for potential high-end applications, including computers, copy machines, aircraft, radar, medical equipment and electronic control systems — each designed to meet the most stringent environmental conditions for dielectric strength, moisture, resistance, vibration, shock and hermetic seal. And S&C offers custom packaged thermostats for complete application flexibility.





image image image

Commercial Thermostats 2450A Series 2450CM Series 2450CMG Series
Use heat detection high current low voltage
Reset type automatic manual manual
Housing material phenolic, epoxy seal cap and terminals ceramic ceramic
Functional property open or close on rise open on rise open on rise
Amperage 3 A 15 A/10 A 0.5 A
Operating temperature range 47 °C to 107 °C [117 °F to 225 °F] 52 °C to 232 °C [125 °F to 450 °F] 52 °C to 232 °C [125 °F to 450 °F]
Environmental exposure range 0 °C to 150 °C [32 °F to 302 °F] 10 °C to 260 °C [50 °F to 500 °F] 10 °C to 260 °C [50 °F to 500 °F]
Contacts WE-1 gold alloy cross point silver/nickel alloy WE-1 gold alloy cross point
Approvals UL UL, CSA, VDE UL, CSA, VDE





    2450HR Series Benefits:


    Small size allows enhanced response to temperature changes. Factory calibrated to customer’s specs. 4-posted “H” construction for application mounting bracket. Potential for use in HVAC, major appliances, automotive, heat and smoke detectors and office copy machines.

  1. 2450HR Series - Features:
    1. Cost effective, Rivet sleeve construction,
    2. Factory calibrated,
    3. Wide variety of mounting brackets and terminals.




  2. 2450HRG Series Benefits:


    Small product size allows enhanced response to temperature changes. Factory calibrated to customer’s specification. 4-posted “H” construction for application mounting bracket. Gold alloy contacts for low voltage HVAC, major appliance, automotive, heat/smoke detectors and copy machine potential applications.

  3. 2450HRG Series - Features:
    1. Cost effective, Gold alloy contacts,
    2. Rivet sleeve construction, Factory calibrated,
    3. Wide variety of mounting brackets and terminals.




  4. 2450R Series Benefits:


    Low profile and small size allows enhanced response to temperature changes. Factory calibrated to customer’s specification. Potential for use in high current HVAC, major appliance, automotive, heat/smoke detector and copy machine applications.

  5. 2450R Series - Features:
    1. Cost effective, Rivet sleeve construction,
    2. Low profile,
    3. Wide variety of mounting brackets and terminals.





image image image

Commercial Thermostats 2450HR Series 2450HRG Series 2450R Series
Use high current low current high current
Reset type automatic automatic automatic
Housing material phenolic phenolic phenolic
Functional property open or close on rise open on rise open or close on rise
Amperage 15 A/10 A 0.5 A 15 A/10 A
Operating temperature range 0 °C to 150 °C [32 °F to 302 °F] 0 °C to 150 °C [32 °F to 302 °F] 0 °C to 150 °C [32 °F to 302 °F]
Environmental exposure range -18 °C to 177 °C [0 °F to 350 °F] -18 °C to 177 °C [0 °F to 350 °F] -18 °C to 177 °C [0 °F to 350 °F]
Contacts silver/nickel alloy WE-1 gold alloy cross point silver/nickel alloy
Approvals UL, CSA UL, CSA UL, CSA





    2450RC Series Benefits:


    Low profile and small size allows enhanced response to temperature changes. Potential for use in high current HVAC, power supplies, decorative fire places, glue gun applications.

  1. 2450RC Series - Features:
    1. Cost effective, Rivet sleeve construction,
    2. Low profile,
    3. Wide variety of mounting brackets and terminals.




  2. 2450RCG Series Benefits:


    Low profile and small product size allows enhanced response to temperature changes. Gold alloy contacts allow for potential use for low voltage HVAC, power supply, decorative fire places and glue gun applications.

  3. 2450RCG Series - Features:
    1. Cost effective, Gold alloy contacts,
    2. Rivet sleeve construction, Low profile,
    3. Wide variety of mounting brackets and terminals.



  4. 2450RG Series Benefits:


    Small product size allows enhanced response to temperature changes. 4- posted “H” construction for application mounting bracket. Gold alloy contacts allow for potential use for low voltage tabletop appliance applications.

  5. 2450RG Series - Features:
    1. Cost effective, Gold alloy contacts,
    2. Rivet sleeve construction,
    3. Wide variety of mounting brackets and terminals.





image image image

Commercial Thermostats 2450RC Series 2450RCG Series 2450RG Series
Use high current low voltage low voltage
Reset type automatic automatic automatic
Housing material ceramic ceramic phenolic
Functional property open or close on rise open or close on rise open or close on rise
Amperage 15 A/10 A 0.5 A 0.5 A
Operating temperature range 0 °C to 260 °C [32 °F to 500 °F] 0 °C to 260 °C [32 °F to 500 °F] 0 °C to 150 °C [32 °F to 302 °F]
Environmental exposure range -20 °C to 287 °C [0 °F to 550 °F] -20 °C to 287 °C [0 °F to 550 °F] -18 °C to 177 °C [0 °F to 350 °F]
Contacts silver/nickel alloy WE-1 gold alloy cross point WE-1 gold alloy cross point
Approvals UL, CSA, VDE UL, CSA, VDE UL, CSA





    2455R Series Benefits:


    Small product size allows enhanced response to temperature changes. Factory calibrated to customer’s specification. Potential for use in high current HVAC, automotive, copy machine, major appliance and heat/smoke detection applications.

  1. 2455R Series - Features:
    1. Cost effective, Rivet sleeve construction,
    2. High profile, High current,
    3. Wide variety of mounting brackets and terminals.




  2. 2455RA Series Benefits:


    Small size allows enhanced response to temperature changes. Epoxy sealed for long life. Available with or without heat collectors. Gold alloy contacts allow for potential use for low voltage fire alarm, smoke detector and security device applications.

  3. 2455RA Series - Features:
    1. Cost effective, Gold alloy contacts,
    2. Epoxy-sealed cap and terminals,
    3. Wide variety of terminals,
    4. Stepped aluminum cap - 15 ft spacing, 1” collector for 30’ spacing, and a 1.5 in collector for 50 ft spacing. Collector brackets available per UL.




  4. 2455RVB Series Benefits:


    Epoxy overmolded construction provides electrical insulation. Small size allows enhanced response to temperature changes. Factory calibrated to customer’s specification. Potential for use in high current automotive and industrial equipment applications.

  5. 2455RVB Series - Features:
    1. Cost effective, Epoxy overmold,
    2. Rivet sleeve construction, Dust-free housing.
    3. Factory calibrated, Wide variety of mounting brackets and terminals.





image image image

Commercial Thermostats 2455R Series 2455RA Series 2455RVB Series
Use high current heat detection high current
Reset type automatic automatic automatic
Housing material phenolic phenolic, epoxy seal cap and terminals ceramic, epoxy overmold
Functional property open or close on rise close on rise open or close on rise
Amperage 15 A/10 A 3 A 15 A/10 A
Operating temperature range 0 °C to 150 °C [32 °F to 302 °F] 47 °C to 107 °C [117 °F to 225 °F] -12 °C to 105 °C [10 °F to 250 °F]
Environmental exposure range -18 °C to 177 °C [0 °F to 350 °F] 0 °C to 150 °C [32 °F to 302 °F] -18 °C to 121 °C [0 °F to 250 °F]
Contacts silver/nickel alloy WE-1 gold alloy cross point silver/nickel alloy
Approvals UL, CSA, VDE UL UL, CSA, VDE





    2455RC Series Benefits:


    Small product size allows enhanced response to temperature changes. Potential for use in high current HVAC, power supply, spa and office automation applications.

  1. 2455RC Series - Features:
    1. Cost effective, Rivet sleeve construction
    2. High profile,
    3. Wide variety of mounting brackets and terminals.




  2. 2455RG Series Benefits:


    Small product size allows enhanced response to temperature changes. Factory calibrated to customer’s specification. Gold alloy contacts allow for potential use for low voltage HVAC, automotive, copy machines, heat/ smoke detection and major appliance applications.

  3. 2455RG Series - Features:
    1. Cost effective, Gold alloy contacts,
    2. Rivet sleeve construction, High profile,
    3. Factory calibrated, Wide variety of mounting brackets and terminals.




  4. 2455RM Series Benefits:


    Small size allows enhanced response to temperature changes. Used in high current. Factory calibrated to customer’s specification. Potential uses include HVAC, power supply and office automation.

  5. 2455RM Series - Features:
    1. Cost effective, Rivet sleeve construction,
    2. Factory calibrated,
    3. Wide variety of mounting brackets and terminals.





image image image

Commercial Thermostats 2455RC Series 2455RG Series 2455RM Series
Use high current low voltage high current
Reset type automatic automatic manual
Housing material ceramic phenolic phenolic
Functional property open on rise open or close on rise open on rise
Amperage 15 A/10 A 0.5 A 15 A/10 A
Operating temperature range 0 °C to 260 °C [32 °F to 500 °F] 0 °C to 150 °C [32 °F to 302 °F] 0 °C to 150 °C [32 °F to 302 °F] (inclusive)
Environmental exposure range -20 °C to 287 °C [0 °F to 550 °F] -18 °C to 177 °C [0 °F to 350 °F] -18 °C to 260 °C [0 °F to 500 °F]
Contacts silver/nickel alloy WE-1 gold alloy cross point silver/nickel alloy
Approvals UL, CSA, VDE UL, CSA, VDE UL, CSA, VDE





    PRECISION THERMOSTATS:


    3000 Series Benefits:


    Internal and external design options meet exacting customer requirements. All-welded, hermetically sealed stainless steel construction for potential military applications requiring flexibility in mounting and terminal configurations.

  1. 3000 Series - Features:
    1. Custom packaging, Hermetically sealed,
    2. Tight tolerances, Tight differentials,
    3. Customized probe length, Hermetic connector or potted constructions.






Precision Thermostats 3000 Series
Description custom packaged
Amperage 7.0 A resistive
Housing material stainless steel or brass
Operating temperature -29 °C to 260 °C [-20 °F to 500 °F]
Environmental exposure range -62 °C to 288 °C [-80 °F to 550 °F]
Dielectric strength MIL-STD-202, Method 301; 1250 Vac 60 Hz - Terminal to Case
Insulation resistance MIL-STD-202, Method 302; 50 MOhm min. Terminal to Case
Contact resistance MIL-STD-202, Method 307; 0.050 Ohm
Hermetic seal MIL-STD-202, Method 112; Cond. A, 1x10-5 atm cc/s
Moisture resistance MIL-STD-202, Method 106
Shock N/A
Vibration N/A
Thermal shock N/A
Salt spray N/A
Acceleration N/A





    3100 Series Benefits:


    Designed to meet or exceed critical commercial and industrial specifications. Temperature calibrations pre-set at factory. Each unit 100% thermally and mechanically inspected. Potential applications include computers, medical electronics, power supplies, industrial controls, infotech, and test equipment.

  1. 3100 Series - Features:
    1. Hermetically sealed, Tight tolerances,
    2. Tight differentials, Pre-set and tamper proof,
    3. SPST contacts, Wide variety of mounting brackets and terminals.




  2. 3100U Series Benefits:


    UL approved products designed to meet or exceed critical commercial and industrial specifications. Temperature calibrations pre-set at factory. Each unit 100 % thermally and mechanically inspected. Potential applications include computers, medical electronics, power supplies, industrial controls, infotech, and test equipment.

  3. 3100U Series - Features:
    1. UL approved, Hermetically sealed,
    2. Tight tolerances, Tight differentials,
    3. Pre-set and tamper proof, SPST contacts,
    4. Wide variety of mounting brackets and terminals.




  4. 3106 Series Benefits:


    Gold alloy contacts for low voltage applications. Designed to meet or exceed critical commercial and industrial specifications. Temperature calibrations pre-set at factory. Each unit 100% thermally and mechanically inspected. Potential applications include computers, medical electronics, power supplies, industrial controls, infotech, and test equipment.

  5. 3106 Series - Features:
    1. Gold alloy contacts, Hermetically sealed,
    2. Tight tolerances, Tight differentials,
    3. Pre-set and tamper proof, SPST contacts,
    4. Wide variety of mounting brackets and terminals.





image image image

Precision Thermostats 3100 Series 3100U Series 3106 Series
Description hermetic UL-approved hermetic low level hermetic
Amperage 2.0 A/1.0 A/5.0 A/5.0 A 3.0 A resistive max. 100 mA/500 mA
Housing material steel housing hermetically sealed with glass-to-metal seal at terminal junction steel housing hermetically sealed with glass-to-metal seal at terminal junction steel housing hermetically sealed with glass-to-metal seal at terminal junction
Operating temperature -29 °C to 260 °C [-20 °F to 500 °F] -29 °C to 260 °C [-20 °F to 500 °F] -29 °C to 204 °C [-20 °F to 400 °F]
Environmental exposure range -62 °C to 288 °C [-80 °F to 550 °F] -62 °C to 288 °C [-80 °F to 550 °F] -62 °C to 260 °C [-80 °F to 500 °F]
Dielectric strength MIL-STD-202, Method 301; 1250 Vac 60 Hz - Terminal to Case MIL-STD-202, Method 301; 1250 Vac 60 Hz - Terminal to Case MIL-STD-202, Method 301; 1250 Vac 60 Hz - Terminal to Case
Insulation resistance MIL-STD-202, Method 302; Cond. B - 500 MOhm - 500 Vdc applied MIL-STD-202, Method 302; 50 MOhm or MIL-STD-202, Method 302; Cond. B - 500 MOhm - 500 Vdc applied MIL-STD-202, Method 302; Cond. B - 500 MOhm - 500 Vdc applied
Contact resistance MIL-STD-202, Method 307; 0.050 Ohm MIL-STD-202, Method 307; 0.050 Ohm max. MIL-STD-202, Method 307; 0.050 Ohm
Hermetic seal MIL-STD-202, Method 112; Cond. 1 x 10-5 MIL-STD-202, Method 112; Cond. 1 x 10-5 MIL-STD-202, Method 112; Cond. 1 x 10-5
Moisture resistance MIL-STD-202, Method 106 MIL-STD-202, Method 106 MIL-STD-202, Method 106
Shock N/A N/A N/A
Vibration N/A N/A N/A
Thermal shock N/A N/A N/A
Salt spray N/A N/A N/A
Acceleration N/A N/A N/A





    3150 Series Benefits:


    Low silhouette and compact design may be well suited for potential applications including industrial, food service, telecom, medical, and infotech where space is at a premium. Temperature calibrations pre-set at factory. Each unit 100% thermally and mechanically inspected.

  1. 3150 Series - Features:
    1. Low silhouette and compact design, Hermetically sealed,
    2. Tight tolerances, Tight differentials, Pre-set and tamper proof,
    3. SPST contacts, Wide variety of mounting brackets and terminals.




  2. 3153 Series Benefits:


    Acceptance testing performed in accordance to Mil-PRF-24236, Table III. Temperature calibrations pre-set at factory. Each unit 100% thermally and mechanically inspected. Low silhouette and compact design may be well suited for potential military and commercial aircraft applications where space is at a premium.

  3. 3153 Series - Features:
    1. Low silhouette and compact design, Hermetically sealed,
    2. Tight tolerances, Tight differentials, Pre-set and tamper proof,
    3. SPST contacts, Wide variety of mounting brackets and terminals.




  4. 3156 Series Benefits:


    Gold alloy contacts for potential low voltage applications. Temperature calibrations pre-set at factory. Each unit 100% thermally and mechanically inspected. Low silhouette and compact design may be well suited for potential applications including industrial, food service, telecom, medical, and infotech where space is at a premium.

  5. 3156 Series - Features:
    1. Low silhouette and compact design, Gold alloy contacts,
    2. Hermetically sealed, Tight tolerances, Tight differentials,
    3. Pre-set and tamper proof, SPST contacts,
    4. Wide variety of mounting brackets and terminals.




  6. 3200 Series Benefits:


    Temperature calibrations pre-set at factory. Each unit 100% thermally and mechanically inspected. Desinged to meet or exceed military and aerospace specifications for spaceflight use, including temperature stability, shock, vibration and cleanliness.

  7. 3200 Series - Features:
    1. NASA certified, Space qualified, Hermetically sealed,
    2. Tight tolerances, Tight differentials, Pre-set and tamper proof,
    3. SPST contacts, Wide variety of mounting brackets and terminals available.





image image image image

Precision Thermostats 3150 Series 3153 Series 3156 Series 3200 Series
Description low silhouette hermetic low silhouette hermetic low level, silhouette hermetic aerospace
Amperage 2.0 A/1.0 A/2.0 A/2.0 A 2.0 A resistive 100 mA/500 mA 5.0 A resistive
Housing material steel housing hermetically sealed with glass-to-metal seal at terminal junction steel housing hermetically sealed with glass-to-metal seal at terminal junction steel housing hermetically sealed with glass-to-metal seal at terminal junction steel housing hermetically sealed with glass-to-metal seal at terminal junction
Operating temperature -29 °C to 177 °C [-20 °F to 350 °F] -29 °C to 177 °C [-20 °F to 350 °F] -29 °C to 204 °C [-20 °F to 400 °F] -51 °C to 163 °C [-60 °F to 325 °F]
Environmental exposure range -54 °C to 260 °C [-65 °F to 500 °F] -65 °C to 260 °C [-85 °F to 500 °F] -62 °C to 260 °C [-80 °F to 500 °F] -65 °C to 177 °C [-85 °F to 350 °F]
Dielectric strength MIL-STD-202, Method 301; 750 Vac 60 Hz - Terminal to Case MIL-STD-202, Method 301; 1250 Vac 60 Hz - Terminal to Case MIL-STD-202, Method 301; 1250 Vac 60 Hz - Terminal to Case MIL-STD-202, Method 301; 1250 Vac
Insulation resistance MIL-STD-202, Method 302; Cond. B - 500 MOhm - 500 Vdc applied MIL-STD-202, Method 302; 500 MOhm MIL-STD-202, Method 302; Cond. B - 500 MOhm - 500 Vdc applied MIL-STD-202, Method 302; 500 MOhm
Contact resistance MIL-STD-202, Method 307; 0.050 Ohm MIL-STD-202, Method 307; 0.050 Ohm max. MIL-STD-202, Method 307; 0.050 Ohm MIL-STD-202, Method 307; 0.025 Ohm max.
Hermetic seal MIL-STD-202, Method 112; Cond. 1 x 10-5 MIL-STD-202, Method 112; Cond. C MIL-STD-202, Method 112; Cond. 1 x 10-5 MIL-STD-202, Method 112; Cond. C
Moisture resistance MIL-STD-202, Method 106 MIL-STD-202, Method 106 MIL-STD-202, Method 106 MIL-STD-202, Method 106
Shock N/A MIL-STD-202, Method 213; 100 G N/A MIL-STD-202, Method 213; 750 G
Vibration N/A MIL-STD-202, Method 204; 20 G N/A MIL-STD-202, Method 204; 30 G: MIL-STD-202, Method 214; 50 G
Thermal shock N/A MIL-STD-202, Method 107; Cond. B N/A MIL-STD-202, Method 107; Cond. B
Salt spray N/A MIL-STD-202, Method 101; Cond. B N/A MIL-STD-202, Method 101; Cond. B
Acceleration N/A N/A N/A MIL-STD-202, Method 212; 20 G





FLEXIBLE HEATERS:


    78000 Series:


    Electrically-conductive transparent film eliminates need for resistance wires or traces and also accommodates potential EMI/RFI shielding applications. Optical grade, thin-film polyester is designed to ensure clarity and optimum readability in extreme environments. Transparent PSA permits light transmission up to 93 % and allows heating element to be mounted in front of or behind LCD. Low power consumption for use with battery or line power. May be combined with other Honeywell thermal products to form custom engineered heating solutions. Warms LCDs (liquid crystal displays) in cold, moist environments down to -40 °C [40 °F], including display systems, medical equipment, food service display cabinets and outdoor camera systems.

  1. 78000 Series - Features:
    1. Truly transparent, no wires in clear view area,
    2. Optical grade, thin-film polyester,
    3. Low power consumption.




  2. Everything you expect from the industry leader:


    Whether we’re warming fluids in medical applications or backing up power supplies for telecom base stations, Honeywell S&PS flexible heaters are the gold standard. But enhanced performance and reliability are only the start.

    Customization:


    It sets us apart from commodity suppliers. Honeywell S&PS excels in tailored, value added designs. Our modular components are assembled in-house according to your specifications.

    Service:


    As your true globally competitive answer. Local support. Distributor stocking. Even full-line, one-stop convenience. Whether you knew us as Elmwood Sensors or know us as Honeywell S&PS, everyone knows we are the leader in superior service.






Flexible Heaters 78000 Series
Description transparent
Maximum power 0.155 W/cm2 [5 W/in2]
Operating/storage temperature range -40 °C to 85 °C [-40 °F to 185 °F]
Size constraints 0,60 m x 0,43 m [22 in x 17 in]
Geometry specific to customer requirements within size constraints
Heater trace pattern continuous layer of ITO (Indium Tin Oxide) across entire surface
Construction Very thin layer of ITO electrically sputtered on PET polyester film. Electrical connection made via silver ink or carbon bus bars laid on top of the ITO. Wire connections made via ring terminals eyeleted to the silver or carbon bus bars or flexible tail/ connector.
Standard wire type • UL 1180 Teflon
• gauge per customer request
• otherwise selected for max. heater current draw
PSA (Pressure Sensitive Adhesive) yes





      3400 Series Benefits:


      Kapton is designed to provide thermal stability over a wide temperature range. PSA simplifies installation. May be bonded to other system parts or combined with other Honeywell thermal products to form custom-engineered heating solutions. Used where thin profile and/or low material outgassing are important considerations such as airborne valves, appliances, and medical electronics.

    1. 3400 Series - Features:
      1. Low out gassing, Variety of geometries such as flat,
      2. Molded-to-shape and spiral wrap,
      3. High dielectric strength with minimum thickness,
      4. Standard designs UL and CSA approved.





    2. image

      Flexible Heaters 3400 Series
      Description Kapton® insulated or Kapton® insulated high temperature
      Maximum power 16 W/cm2 [40 W/in2]
      Operating/storage temperature range • Kapton insulated: 177 °C [350 °F] max.
      • Kapton insulated high temperature: 260 °C [500 °F] max.
      Size constraints 0,61 m x 0,61 m [24 in x 24 in]
      Geometry specific to customer requirements within size constraints
      Heater trace pattern specific to customer requirements
      Construction Contains etched, resistive foil encased between two layers of Kapton. Kapton Insulated uses acrylic, thermoset bonding adhesive; Kapton Insulated High Temperature uses Teflon® bonding adhesive
      Standard wire type • UL 1180 Teflon
      • gauge per customer request
      • otherwise selected for max. heater current draw
      PSA (Pressure Sensitive Adhesive) yes





          3100 Series Benefits:


          Multi-stranded resistance wires allow wire-wound heaters to conform to three dimensional shapes for potential airborne valve, appliance, and medical electronics applications. PSA simplifies installation.

        1. 3100 Series - Features:
          1. Virtually any size and shape,
          2. Standard designs UL and CSA approved.




          1. 3200 Series Benefits:


            Easily vulcanized to metal parts. PSA simplifies installation. May be bonded to other system parts or combined with other Honeywell thermal products to form custom-engineered heating solutions. Used where multiple Watt densities or varying trace geometries are required such as airborne valves, appliances, and medical electronics.

          2. 3200 Series - Features:
            1. Multiple Watt densities or varying trace geometries,
            2. Variety of geometries such as flat, molded-to-shape and spiral wrap,
            3. Standard designs UL and CSA approved.





      image image

      Flexible Heaters 3100 Series 3200 Series
      Description silicone wire-wound silicone chemically-etched
      Maximum power 16 W/cm2 [40 W/in2] 16 W/cm2 [40 W/in2]
      Operating/storage temperature range 250 °C [482 °F] max. 200 °C [392 °F] max. (UL) 250 °C [482 °F] max. 200 °C [392 °F] max. (UL)
      Size constraints none, virtually any size and shape 0,61 m x 0,61 m [24 in x 24 in]
      Geometry specific to customer requirements specific to customer requirements within size constraints
      Heater trace pattern specific to customer requirements specific to customer requirements
      Construction Contains resistive wire encased between two layers of fiberglass-supported silicone rubber. All bonding adhesives are uncured silicone rubber. Cured under pressure and temperature during manufacturing. Contains resistive foil traces encased between two layers of fiberglass-supported silicone rubber bonded together using temperature and pressure. Heater trace patterns generated similar to processes used in printed circuit board design and manufacture.
      Standard wire type • UL 1180 Teflon
      • gauge per customer request
      • otherwise selected for max. heater current draw
      • UL 1180 Teflon
      • gauge per customer request
      • otherwise selected for max. heater current draw
      PSA (Pressure Sensitive Adhesive) yes yes




      Humidity Sensors Temperature Sensors Thermostats Sensors Flexible Heaters
