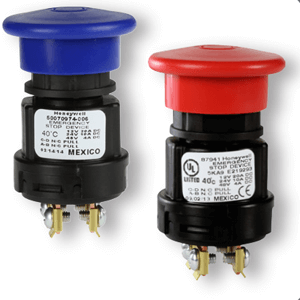

Push-Pull and E-Stop Switches





Honeywell's push-pull/e-stop switches are robust, environmentally sealed, sliding contact switches incorporating two circuits with multiple combinations. The sliding contacts provide positive contact closure and opening when the switch knob is operated. Contact closures are available with both circuits closed in the push position, or both circuits closed in the pull position, or alternate closure, one closed and one open. Dual O-ring design protects the contact chamber by isolating it from any moisture or any other contaminant.


Push-Pull Switches:



Catalog Listing1 Knob Color Circuitry Terminal Type Terminals Approvals Bulk Packaging Dimensional Drawing
88843-00 Orange 2NO Screw terminal 4 UL, CE 150 units per box Figure 1
89496-09 Orange 2NC Screw terminal 4 UL, CE 150 units per box Figure 2
90098-09 Orange 1NC/1NO Screw terminal 4 UL, CE 150 units per box Figure 4
50070967-001-00 Orange 2NC Screw terminal 4 150 units per box Figure 2
50070967-001-01 Orange 2NC Screw terminal 4 50 units per box Figure 2
50070967-001-08 Orange 2NC Screw terminal 4 48 units per box Figure 2
50070967-003-00 Yellow 2NC Screw terminal 4 150 units per box Figure 2
50070967-003-01 Yellow 2NC Screw terminal 4 50 units per box Figure 2
50070967-003-08 Yellow 2NC Screw terminal 4 48 units per box Figure 4
50070967-004-00 Black 2NC Screw terminal 4 150 units per box Figure 2
50070967-004-01 Black 2NC Screw terminal 4 50 units per box Figure 2
50070967-004-08 Black 2NC Screw terminal 4 48 units per box Figure 2
50070967-005-08 Green 2NC Screw terminal 4 48 units per box Figure 2
50070967-006-08 Blue 2NC Screw terminal 4 48 units per box Figure 2
50070967-008-08 Gray 2NC Screw terminal 4 48 units per box Figure 2
50070967-009-08 White 2NC Screw terminal 4 48 units per box Figure 2
50070974-001-00 Orange 1NC/1NO Screw terminal 4 150 units per box Figure 4
50070974-001-01 Orange 1NC/1NO Screw terminal 4 50 units per box Figure 4
50070974-001-08 Orange 1NC/1NO Screw terminal 4 48 units per box Figure 4
50070974-003-00 Yellow 1NC/1NO Screw terminal 4 150 units per box Figure 4
50070974-003-01 Yellow 1NC/1NO Screw terminal 4 50 units per box Figure 4
50070974-003-08 Yellow 1NC/1NO Screw terminal 4 48 units per box Figure 4
50070974-004-00 Black 1NC/1NO Screw terminal 4 150 units per box Figure 4
50070974-004-01 Black 1NC/1NO Screw terminal 4 50 units per box Figure 4
50070974-004-08 Black 1NC/1NO Screw terminal 4 48 units per box Figure 4
50070974-005-00 Green 1NC/1NO Screw terminal 4 150 units per box Figure 4
50070974-005-01 Green 1NC/1NO Screw terminal 4 50 units per box Figure 4
50070974-005-08 Green 1NC/1NO Screw terminal 4 48 units per box Figure 4
50070974-006-00 Blue 1NC/1NO Screw terminal 4 150 units per box Figure 4
50070974-006-01 Blue 1NC/1NO Screw terminal 4 50 units per box Figure 4
50070974-008-00 Gray 1NC/1NO Screw terminal 4 150 units per box Figure 4
50070974-008-01 Gray 1NC/1NO Screw terminal 4 50 units per box Figure 4
50070974-008-08 Gray 1NC/1NO Screw terminal 4 48 units per box Figure 4
50070974-009-00 White 1NC/1NO Screw terminal 4 150 units per box Figure 4
50070974-009-01 White 1NC/1NO White 4 50 units per box Figure 4
50070974-009-08 White 1NC/1NO Screw terminal 4 48 units per box Figure 4
50087384-12 Yellow 1NC/1NO Screw terminal 4 48 units per box Figure 7



E-Stop Switches:



Catalog Listing1 Knob Color Circuitry Terminal Type Terminals Approvals Bulk Packaging Dimensional Drawing
87941-00 Red 2NC Screw terminal 4 150 units per box Figure 2
87941-01 Red 2NC Screw terminal 4 UL, CE 150 units per box Figure 2
87941-08 Red 2NC Screw terminal 4 UL, CE 50 units per box Figure 2
87943-00 Red 1NC/1NO Screw terminal 4 UL, CE 150 units per box Figure 4
87943-01 Red 1NC/1NO Screw terminal 4 UL, CE 50 units per box Figure 4
87943-08 Red 1NC/1NO Screw terminal 4 UL, CE 48 units per box Figure 4
87944-00 Red 2NO Screw terminal 4 UL, CE 150 units per box Figure 1
87944-04 Red 2NO Screw termina 4 UL, CE 100 units per box Figure 1
87944-08 Red 2NO Screw terminal 4 UL, CE 48 units per box Figure 1
50058830-05 Red 1NC/1NO Wire harness with 4-pin Deutsch connector n/a UL, CE 150 units per box Figure 5
50070967-002-08 Red 2NC Screw terminal 4 48 units per box Figure 2
50070974-002-00 Red 1NC/1NO Screw terminal 4 UL, CE 150 units per box Figure 4
50070974-002-01 Red 1NC/1NO Screw terminal 4 50 units per box Figure 4
50070974-002-08 Red 1NC/1NO Screw terminal 4 UL, CE 48 units per box Figure 4
50093979-05 Red 2NC Wire harness with 4-pin Deutsch connector n/a 150 units per box Figure 3



Momentary Push-Pull Switches:



Catalog Listing1 Knob Color Circuitry Terminal Type Terminals Approvals Bulk Packaging Dimensional Drawing
90201-02 Red 1NC Screw terminal 2 UL, CE 50 units per box Figure 6
90221-09 Orange 2NC Screw terminal 4 UL, CE 150 units per box Figure 2
